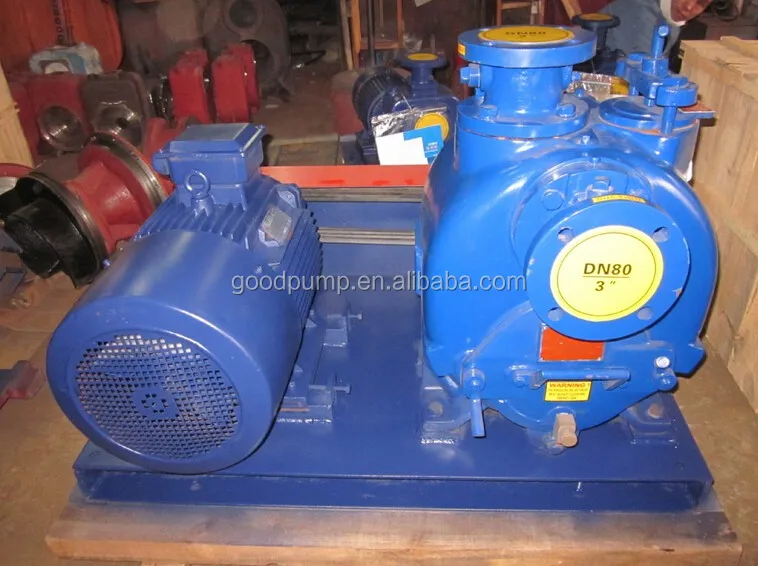

1.Electric motor pump complete set will include pump+electric motor+base plate

2.Diesel engine water pump complete set will include pump+diesel engine+ PTO

(power take off clutch )+base plate+normal/intelligent control panel

3.The accessories: two wheels or four wheels trailer, silence-box or weather-proof, vacuum assisted system (for increasing the suction lift) etc. can be supplied according to customers' demands.

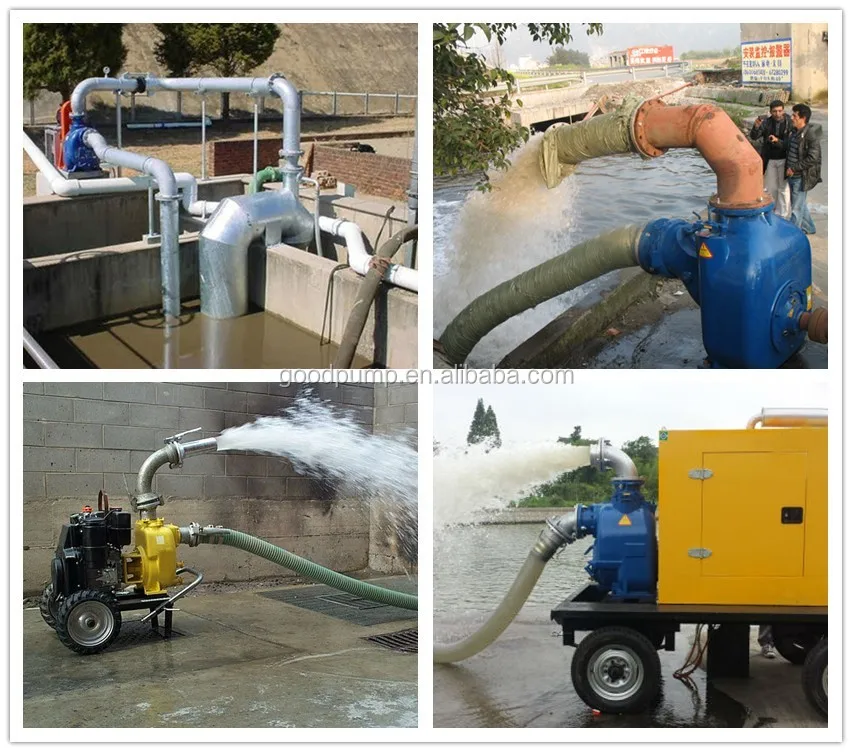

1. Municipal engineering ,Wastewater treatment ,constructional engineering

2. Sewage collection or discharge in residential community

3. Sewage discharge in hospital and hotel

4. Centralized and staged disposal in sewage treatment plant

5. Water drainage station

6. Seriously polluted water discharge

7. Agricultural irrigation etc.

Pump Model: SP-2, SP-3, SP-4, SP-6, SP-8, SP-10, SP-12

(Model meaning: E.G. JT-2 means 2inch for inlet and 2inch for outlet diameters)

Flow Rate:2-1275m3/h

Head:2-62m

Speed: 650rpm-2150rpm

Max.Suction Lift: 7.6m

Max.Passing Solid: 76.2mm

Range of Power: 1-125hp

Net.Weight (Bare Pump): 92-998kgs

Warranty Time: The whole pump is guaranteed within 1year, the pump's spare spare parts is 3 months

Delivery Time: Bare Pump(5-7days) Pump with diesel engine(20-35days)

PS:According to your quantity, the delivery time will be different

Electric Motor:

50HZ/ 60 HZ, 3phase, 220V/ 380V or others etc.

Motor type: general motor, explosion-proof motor

Coulping: horizontal V-belt coupling , vertical type and directly coupling

Diesel Engine:

Cummins, deutz, perkins, lister peter, ricardo, Chinese etc brands engine according to customers' requirements or we recommend

Engine Type:  air cooled or water cooled engine

Connection way for pump with engine:  pin coupling (hard to hard), high elastic coupling (avoid vibration, can protect the pump set)

Installation: diretly coupling engine mounted, horizontal V-belt  type installation, vertical type
